XTRACT - a command line tool for automated tractography

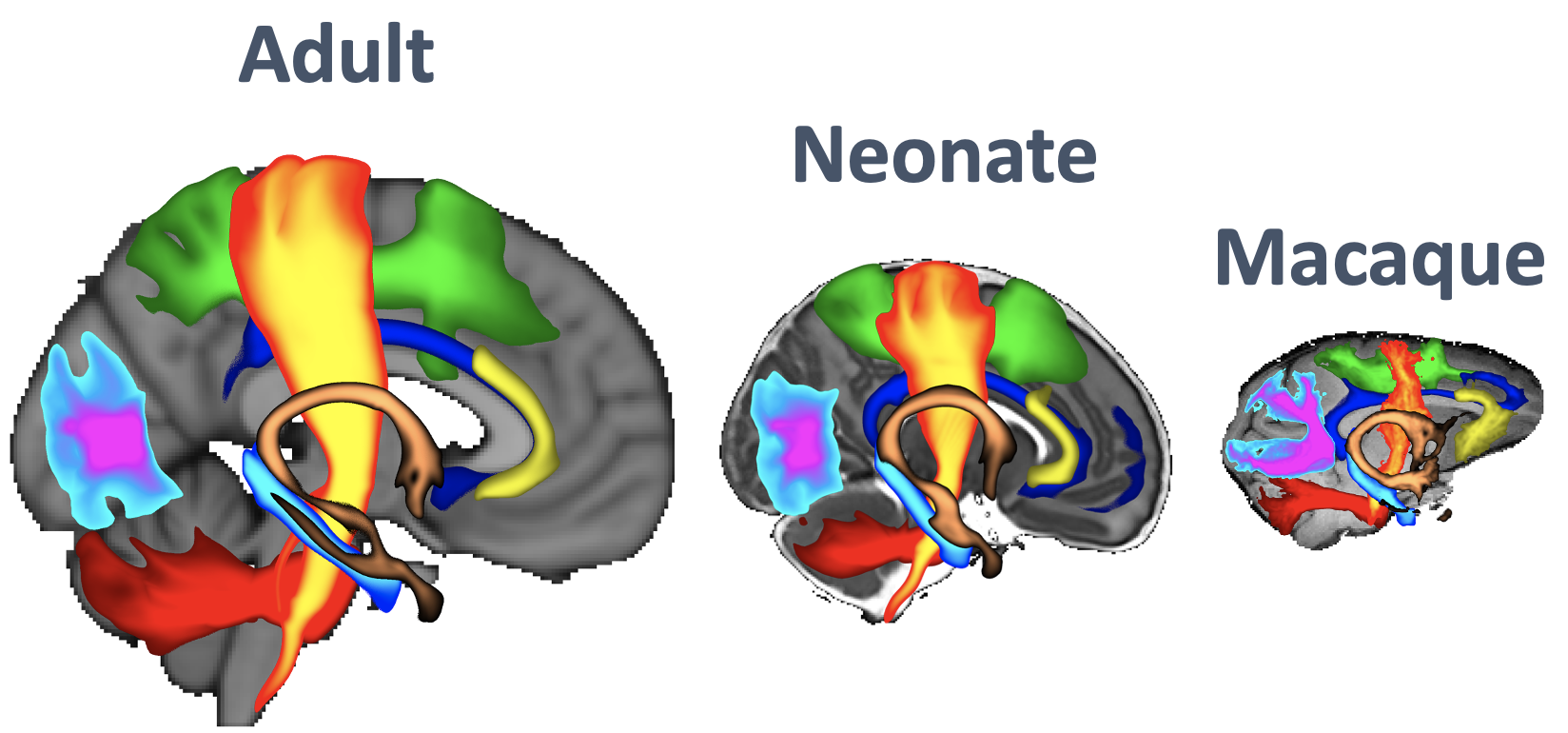

XTRACT (cross-species tractography) can be used to automatically extract a set of carefully dissected tracts in human (neonates and adults) and macaques. It can also be used to define one's own tractography protocols where all the user needs to do is to define a set of masks in standard space (e.g. MNI152).

XTRACT reads the standard space protocols and performs probabilistic tractography (probtrackx in the subject's native space. Resultant tracts may be stored in either the subject's native space or in standard space. The user must provide the crossing fibres fitted data (bedpostx) and diffusion to standard space registration warp fields (and their inverse).

XTRACT atlases are available within FSLeyes or can be downloaded here.

This page is organised into the following sections:

Citation

If you use XTRACT in your research, please cite the following articles:

Warrington S., Bryant K., Khrapitchev A., Sallet J., Charquero-Ballester M., Douaud G., Jbabdi S.*, Mars R.*, Sotiropoulos S.N.* (2020) XTRACT - Standardised protocols for automated tractography and connectivity blueprints in the human and macaque brain. NeuroImage, 217(116923). DOI: 10.1016/j.neuroimage.2020.116923

Warrington S.*, Thompson E.*, Bastiani M., Dubois J., Baxter L., Slater R., Jbabdi S., Mars R.B., Sotiropoulos S.N. (2022) Concurrent mapping of brain ontogeny and phylogeny within a common space: Standardzed tractography and applications. Science Advances, 8(42). DOI: 10.1126/sciadv.abq2022

de Groot M., Vernooij M.W. Klein S., Ikram M.A., Vos F.M., Smith S.M., Niessen W.J., Andersson J.L.R. (2013) Improving alignment in Tract-based spatial statistics: Evaluation and optimization of image registration. NeuroImage, 76(1), 400-411. DOI: 10.1016/j.neuroimage.2013.03.015

If you use the macaque protocols, please cite:

Assimopoulos, S., Warrington, S., Bryant, K.L., Pszczolkowski, S., Jbabdi S., Mars R., Sotiropoulos S.N. Generalising XTRACT tractography protocols across common macaque brain templates. Brain Struct Funct (2024). DOI: 10.1007/s00429-024-02760-0

XTRACT

XTRACT is a command-line tool. XTRACT automatically detects if $SGE_ROOT is set and if so uses fsl_sub. For optimal performance, use the GPU version!

Simply type xtract or xtract --help to get the usage:

 __  _______ ____      _    ____ _____
 \ \/ /_   _|  _ \    / \  / ___|_   _|
  \  /  | | | |_) |  / _ \| |     | |
  /  \  | | |  _ <  / ___ \ |___  | |
 /_/\_\ |_| |_| \_\/_/   \_\____| |_|


usage: XTRACT [-h] [-bpx <folder>] [-out <folder>] [-species <SPECIES>]
              [-tract_list <list>] [-str <file>] [-p <folder>]
              [-stdref <reference>] [-stdwarp <path> <path>] [-native]
              [-ref <path> <path> <path>] [-res <mm>] [-ptx_options <file>]
              [-interp <str>] [-gpu] [-par] [-print_list] [-version]

XTRACT: Cross-species tractography

options:
  -h, --help            show this help message and exit

Required arguments:
  -bpx <folder>         Path to bedpostx folder
  -out <folder>         Path to output folder
  -species <SPECIES>    One of HUMAN or MACAQUE or HUMAN_BABY or CUSTOM.

Optional arguments:
  -tract_list <list>    Comma separated tract list defining the subset of
                        tracts to run (must follow xtract naming convention)
  -str <file>           Structures file (format: <tractName> [samples=1], 1
                        means 1000, '#' to skip lines)
  -p <folder>           Protocols folder (all masks in same standard space)
                        (Default=/home/paulmc/fsl/fsl-
                        latest/data/xtract_data/<SPECIES>)
  -stdref <reference>   Standard space reference image (Default =
                        /home/paulmc/fsl/fsl-
                        latest/data/standard/MNI152_T1_1mm [HUMAN],
                        /home/paulmc/fsl/fsl-
                        latest/data/xtract_data/standard/F99/mri/struct_brain
                        [MACAQUE], /home/paulmc/fsl/fsl-latest/data/xtract_dat
                        a/standard/neonate/mri/schuh_template [HUMAN_BABY]
  -stdwarp <path> <path>
                        <std2diff> <diff2std> Non-linear Standard2diff and
                        Diff2standard transforms (Default=bedpostx_dir/xfms/{s
                        tandard2diff_warp.nii.gz,diff2standard_warp.nii.gz})
  -native               Run tractography in native (diffusion) space
  -ref <path> <path> <path>
                        <refimage> <diff2ref> <ref2diff> Reference image for
                        running tractography in reference space,
                        Diff2Reference and Reference2Diff transforms
  -res <mm>             Output resolution (Default=same as in protocol folders
                        unless '-native' used)
  -ptx_options <file>   Pass extra probtrackx2 options as a text file to
                        override defaults, e.g. --steplength=0.2
                        --distthresh=10)
  -interp <str>         If native/ref: default interpolation of protocol ROIs
                        is nearest neighbour ('nn', since vXXX). For backwards
                        compatability, trilinear plus thresholding ('tri') is
                        available
  -gpu                  Use GPU version
  -par                  If cluster, run in parallel: submit 1 job per tract
  -print_list           List the tract names used in XTRACT
  -version              List the package versions

Example usage:
                        xtract -bpx /data/Diffusion.bedpostX -out /data/xtract -species HUMAN -stdwarp std2diff.nii.gz diff2std.nii.gz -gpu

Outputs of XTRACT

Under <outputDir>:

  • commands.txt - XTRACT processing commands
  • logs - directory containing the probtrackx log files
  • tracts - directory containing tractography results

    • <tractName> - directory per tract, each containing:

      • waytotal - text file containing the number of valid streamlines
      • density.nii.gz - nifti file containing the fibre probability distribution
      • density_lenths.nii.gz - nifti file containing the fibre lengths, i.e. each voxel is the average streamline length - this is the -ompl probtrackx option
      • densityNorm.nii.gz - nifti file containing the waytotal normalised fibre probability distribution (the - density.nii.gz divided by the total number of valid streamlines)
      • if the protocol calls for reverse-seeding:
        • tractsInv - directory containing the above for the seed-target reversed run
        • sum_waytotal and sum_density.nii.gz - the summed waytotal and fibre probability distribution

If the -native option is being used: - masks - directory - <tractName> - directory per tract containing the native space protocol masks

Note

The primary output is the densityNorm.nii.gz file.

Pre-processing

Prior to running XTRACT, you must complete the following steps from FDT processing pipeline:

  1. Brain extraction using BET
  2. Susceptibility distortion correction using topup (only if spin-echo fieldmaps have been acquired - if you don't have these, skip to step 3)
  3. Eddy current distortion and motion correction using eddy
  4. Fit the crossing fibre model using bedpostx
  5. Non-linear registration to standard space (MNI152 for adult human, F99 for macaque), see the FDT pipeline

Your data should now be ready to run XTRACT!

Note on ANTs warp fields

To use these fields, you must convert the warp fields to FSL's FNIRT convention. We provide a script to do so here.

Standard Spaces

  • For HUMAN, XTRACT uses the MNI152 standard space in $FSLDIR/etc/standard
  • For MACAQUE, XTRACT uses the F99 atlas in Caret - see http://brainvis.wustl.edu/wiki/index.php/Caret:Atlases We also provide a copy of the F99 atlas in $FSLDIR/etc/xtract_data/standard/F99. This includes a helper script for registering your own diffusion/structural data to the F99 atlas.
    • MACAQUE protocols are now available in five commonly used templates spaces. Protocols and templates can be found under $FSLDIR/etc/xtract_data/. See 10.1007/s00429-024-02760-0 for full details.
  • For BABY, XTRACT uses the Schuh 40-week PMA template - see https://doi.org/10.1101/251512

XTRACT Tracts

Automatically Extracted Tracts

When running XTRACT with the -species option, a predefined list of tracts is automatically extracted. Currently the following tracts are available (all split into left/right except the commissural tracts):

Tract Abbreviation
Arcuate Fasciculus AF
Acoustic Radiation AR
Anterior Thalamic Radiation ATR
Cingulum subsection : Dorsal CBD
Cingulum subsection : Peri-genual CBP
Cingulum subsection : Temporal CBT
Corticospinal Tract CST
Frontal Aslant FA
Forceps Major FMA
Forceps Minor FMI
Fornix FX
Inferior Longitudinal Fasciculus ILF
Inferior Fronto-Occipital Fasciculus IFO
Middle Cerebellar Peduncle MCP
Middle Longitudinal Fasciculus MdLF
Optic Radiation OR
Superior Thalamic Radiation STR
Superior Longitudinal Fasciculus 1 SLF1
Superior Longitudinal Fasciculus 2 SLF2
Superior Longitudinal Fasciculus 3 SLF3
Anterior Commissure AC
Uncinate Fasciculus UF
Vertical Occipital Fasciculus VOF

You may specify a subset of these tracts using the -tract_list option.

Adding your own tracts

Suppose you want to create an automated protocol for a tract called mytrack.

First you need to create a folder called mytrack which you can add e.g. in the protocols folder.

Then create the following NIFTI files (with this exact naming) and copy them into mytrack:

Compulsory: - seed.nii.gz : a seed mask

Optional: - stop.nii.gz : a stop mask if required - exclude.nii.gz : an exclusion mask if required - ONE of the following: - target.nii.gz : a single target mask - target1.nii.gz, target2.nii.gz, etc. : a number of targets, in which case streamlines will be kept if they cross ALL of them - invert (empty file to indicate that a seed->target and target->seed run will be added and combined) \ if such an option is required, a single target.nii.gz file is also expected

All the masks above should be in standard space (e.g. MNI152 or F99) if you want to run the same tracking for a collection of subjects.

Next, make a structure file using the format <tractName> <nsamples>per line and call XTRACT using -species <SPECIES> -str <file> -p <folder>, pointing to your new protocols folder 'mytrack'.

External Compatible Protocol Libraries

Additional tractography protocols, compatible with XTRACT, are available for other species and brains.

  • Chimpanzee: Bryant et al. (2020) A comprehensive atlas of white matter tracts in the chimpanzee. PLoS Biol 18(12): e3000971
  • Pig: Benn et al. (2020) A Pig White Matter Atlas and Common Connectivity Space Provide a Roadmap for the Introduction of a New Animal Model in Translational Neuroscience bioRxiv
  • 8 non-human primate species: Bryant et al. (2021) Diffusion MRI data, sulcal anatomy, and tractography for eight species from the Primate Brain Bank. Brain Structure and Function
  • Macaque, Gorilla, Chimpanzee, Human: Roumazeilles et al. (2020) Longitudinal connections and the organization of the temporal cortex in macaques, great apes, and humans. PLOS Biology
  • Lar gibbon: Bryant et al. (2023) A map of white matter tracts in a lesser ape, the lar gibbon. Brain Structure and Function

If you have made XTRACT-style protocols and want them to be listed here, get in touch!

To implement external libraries:

  1. download the protocols and standard space from the relevant publication,
  2. build a structure list (<tractName> <nsamples> per line),
  3. follow the pre-processing steps described above to obtain warp fields between the native diffusion space and the relevant standard space (the space in which the protocols are defined),
  4. call XTRACT using the -species CUSTOM argument, specifying the standard space reference, the protocols directory and the structure list file (available in FSL 6.0.5+)

Running XTRACT with other species:

After developing your own protocols for a given species, you may use the -species CUSTOM argument to run XTRACT on any species.

To do so you must provide a standard space brain in addition to specifying the protocol folder and structure file.

XTRACT Atlases

42 probabilistic tract atlases were derived using 1021 subjects from the Human Connectome Project as described in Warrington et al. (2020) NeuroImage. In brief, XTRACT was applied to each subject’s minimally preprocessed diffusion MRI data (Glasser et al, Neuroimage 2013 - Sotiropoulos et al, Neuroimage 2013). The subsequent tract estimates were binarised at a threshold and averaged across the cohort, providing population percent overlap maps for each of the major white matter fibre bundles.

Data were provided by the Human Connectome Project, WU-Minn Consortium (Principal Investigators: David Van Essen and Kamil Ugurbil; 1U54MH091657) funded by the 16 NIH Institutes and Centers that support the NIH Blueprint for Neuroscience Research; and by the McDonnell Center for Systems Neuroscience at Washington University.

We also include equivalent tract atlases for the macaque brain.

These atlases are available within FSLeyes or can be downloaded here.

Citation: Warrington S, Bryant K, Khrapitchev A, Sallet J, Charquero-Ballester M, Douaud G, Jbabdi S, Mars R, Sotiropoulos SN* (2020) XTRACT - Standardised protocols for automated tractography and connectivity blueprints in the human and macaque brain. NeuroImage. DOI: 10.1016/j.neuroimage.2020.116923

XTRACT blueprint

Generating Connectivity Blueprints with xtract_blueprint

xtract_blueprint is a flexible yet simple way to calculate the connectivity blueprint (Mars et al. 2018 eLife, Warrington et al. 2020 NeuroImage, Warrington et al. 2022 SciAdv): a vertex (or voxel) by tract matrix where each row describes how each (sub)cortical location is connected to major white matter fibre bundles, and each column describes the (sub)cortical terminations of each of the white matter fibre bundles. xtract_blueprint can, in principle, build a connectivity blueprint for any brain (e.g. different species), at any resolution (i.e. number of vertices) and for any region (whole whole or a given ROI, a lobe for example), including the subcortex.

The script was written by Shaun Warrington (University of Nottingham), Saad Jbabdi (Oxford University) and Stamatios Sotiropoulos (University of Nottingham).

The below figure summarises the steps that xtract_blueprint runs to obtain the blueprint matrix.

Citations

Mars R., Sotiropoulos S.N., Passingham R.E., Sallet J., Verhagen L., Khrapitchev A.A., Sibson N., Jbabdi S. (2018) Whole brain comparative anatomy using connectivity blueprints. eLife. DOI: 10.7554/eLife.35237

Warrington S.*, Thompson E.*, Bastiani M., Dubois J., Baxter L., Slater R., Jbabdi S., Mars R.B., Sotiropoulos S.N. (2022) Concurrent mapping of brain ontogeny and phylogeny within a common space: Standardzed tractography and applications. Science Advances, 8(42). DOI: 10.1126/sciadv.abq2022

Warrington S., Bryant K., Khrapitchev A., Sallet J., Charquero-Ballester M., Douaud G., Jbabdi S.*, Mars R.*, Sotiropoulos S.N.* (2020) XTRACT - Standardised protocols for automated tractography in the human and macaque brain. NeuroImage. DOI: 10.1016/j.neuroimage.2020.116923

Usage

__  _______ ____      _    ____ _____ _     _                       _       _
\ \/ /_   _|  _ \    / \  / ___|_   _| |__ | |_   _  ___ _ __  _ __(_)_ __ | |_
 \  /  | | | |_) |  / _ \| |     | | | '_ \| | | | |/ _ \ '_ \| '__| | '_ \| __|
 /  \  | | |  _ <  / ___ \ |___  | | | |_) | | |_| |  __/ |_) | |  | | | | | |_
/_/\_\ |_| |_| \_\/_/   \_\____| |_| |_.__/|_|\__,_|\___| .__/|_|  |_|_| |_|\__|
                                                        |_|

usage: XTRACT Blueprint [-h] -bpx <folder> -xtract <folder> -seeds <list>
                        -target <mask> [-warps <path> <path> <path>] [-native]
                        [-out <folder>] [-stage {0,1,2}] [-savetxt]
                        [-prefix <string>] [-rois <list>] [-stops <stop.txt>]
                        [-wtstops <wtstop.txt>] [-exclusion <nifti>]
                        [-subseed <subseed.txt>] [-tract_list <list>]
                        [-thr <float>] [-nsamples <int>] [-res <float>]
                        [-ptx_options <options.txt>] [-gpu] [-keepfiles]
                        [-version]

xtract_blueprint: for generating connectivity blueprints from xtract output

options:
  -h, --help            show this help message and exit

Required arguments:
  -bpx <folder>         Path to bedpostx folder
  -xtract <folder>      Path to xtract folder
  -seeds <list>         Comma separated list of seeds for which a blueprint is
                        requested (e.g. left and right cortex in standard
                        space)
  -target <mask>        A whole brain/WM binary target mask in the same space
                        as the seeds

Optional arguments:
  -warps <ref> <xtract2diff> <diff2xtract> Standard space
                        reference image, and transforms between xtract space
                        and diffusion space
  -native               Run tractography in native (diffusion) space
  -out <folder>         Path to output folder (default is
                        <xtract_dir>/blueprint)
  -stage {0,1,2}        What to run. 0:everythng (default), 1:matrix2,
                        2:blueprint
  -savetxt              Save blueprint as txt file (nseed by ntracts) instead
                        of CIFTI
  -prefix <string>      Specify a prefix for the final blueprint filename
                        (e.g. <prefix>_BP.LR.dscalar.nii)
  -rois <list>          Comma separated list (1 per seed): ROIs (gifti) to
                        restrict seeding (e.g. medial wall masks)
  -stops <stop.txt>     Text file containing line separated list of stop masks
                        (see probtrackx usage for details)
  -wtstops <wtstop.txt>
                        Text file containing line separated list of wtstop
                        masks (see probtrackx usage for details)
  -exclusion <nifti>    NIFTI containing a binary exclusion mask
  -subseed <subseed.txt>
                        Text file containing line separated list of
                        subcortical seeds
  -tract_list <list>    Comma separated list of tracts to include (default =
                        all found under -xtract <folder>)
  -thr <float>          Threshold applied to XTRACT tracts prior to blueprint
                        calculation (default = 0.001)
  -nsamples <int>       Number of samples per seed used in tractography
                        (default = 1000)
  -res <float>          Resolution of matrix2 output (Default = 3 mm). Set to
                        0 for standard space resolution.
  -ptx_options <options.txt>
                        Pass extra probtrackx2 options as a text file to
                        override defaults
  -gpu                  Use GPU version
  -keepfiles            Do not delete temp files
  -version              List the package versions

Example usage:
                        xtract_blueprint -bpx /data/Diffusion.bedpostX -out /data/blueprint -xtract /data/xtract
                                         -seeds l.white.surf.gii,r.white.surf.gii -target WM_segmentation.nii.gz
                                         -rois l.medwall.shape.gii,r.medwall.shape.gii
                                         -warps ref.nii.gz xtract2diff.nii.gz diff2xtract.nii.gz -gpu

Running XTRACT blueprint

In order to use xtract_blueprint, you need to have run xtract first. To construct the connectivity blueprints, xtract_blueprint expects the same warp fields as used in the running of xtract.

xtract_blueprint supports the construction of connectivity blueprints using surface (GIFTI) or volume (NIFTI) files. Surface or volume files may be used for the cortical (white-grey matter boundary) seed. Volume files are required for subcortical seeds. If a volume file is used as the cortical seed, the resultant output will be a 4D NIFTI blueprint. For surface data, the resultant output will be a dscalar CIFTI.

Required input: - bedpostx folder - crossing fibre modelled diffusion data (expects to find nodif_brain_mask) - xtract folder - xtract tract folder (the output from xtract) - seed - the comma separated seed masks to use in tractography (e.g. the white-grey matter boundary surfaces), e.g. L.white.surf.gii, R.white.surf.gii - warps - a reference standard space image and warps to and from the native diffusion and standard spaces, e.g. MNI152.nii.gz standard2diff.nii.gz diff2standard.nii.gz - target - a whole-brain white matter target NIFTI mask (resolution of this target is set by the '-res' flag)

Note

If running whole-brain (recommended), you must provide the left seed first, as exampled. We also recommend that you use a medial wall mask to restrict the blueprint to the GM surface.

Running modes: - Stage 1 only - only run seed-based tractography - Stage 2 only - only run blueprint processing (requires xtract output and tractography from stage 1) - All (default) - runs both stage 1 and stage 2 processing

xtract_blueprint is capable of GPU acceleration (-gpu flag) and works with fsl_sub to submit jobs in parallel. If using the CPU version, expect tractography to take many hours - you can speed this up by using a lower resolution seed and/or target.

Tractography details and options:

Tractography is performed for each seed region separately. The resultant connectivity matrices (fdt_matrix) are stacked in order to construct a whole-brain connectivity blueprint. You may also provide a single hemisphere if you wish.

Optionally, you may also provide stop (stop tracking at locations given by this mask file) and wtstop (allow propagation within mask but terminate on exit) masks. Stop is typically the pial surface. wtstop is typically subcortical structures and/or the white surface. These should be specified as line separated text files. e.g. -seeds <l.white.surf.gii,r.white.surf.gii> -stop stop.txt -wtstop wtstop.txt

Spatial resolution: by default tractography will be ran and stored using a resolution of 3 mm for the target. This may be adjusted using the -res argument. Note: if required, xtract_blueprint will resample the xtract tracts. Warning: connectivity matrices are very large and require a lot of memory to handle - 3 mm is usually sufficient for the adult human brain.

Additional probtrackx options may also be supplied. Simply add the probtrackx arguments to a text file and direct xtract_blueprint to this using the -ptx_options argument.

Connectivity blueprints are primarily concerned with the connectivity of the grey matter to white matter tracts. As such, we offer the option the mask out the medial wall. To do so, provide a single medial wall mask per supplied seed: e.g. -seeds l.white.surf.gii,r.white.surf.gii -rois l.roi,r.roi. By default, the medial wall is included in the calculation of the connectivity blueprint: we recommend the use of the medial wall mask to prevent this.

The -roi argument may be used to restrict the blueprint to any region of interest, not just to exclude the medial wall. For example, you may provide an ROI restricting the blueprint to the temporal or frontal lobe.

If you wish to use a stop/wtstop surface mask, you must ensure that the number of vertices matches the seed mask. This means that, if you are providing a seed mask and medial wall mask to xtract_blueprint, and wish to provide a surface stop mask, you must convert the stop mask to asc, restricting the data points to the medial wall mask, e.g.:

${FSLDIR}/bin/surf2surf -i stop.L.surf.gii -o stop.L.asc --outputtype=ASCII --values=l.roi.shape.gii

${FSLDIR}/bin/surf2surf -i stop.R.surf.gii -o stop.R.asc --outputtype=ASCII --values=r.roi.shape.gii

Then supply stop.L.asc and stop.R.asc in a text file to xtract_blueprint using the -stop argument. This conversion is automatically performed for the seed mask in xtract_blueprint if a medial wall mask is supplied.

Subcortical seeding has now been introduced and may be used with the -subseed flag. This should be a line separated text file which each line provide the absolute path to a NIFIT format subcortical structure (should be a binary mask). For xtract_blueprint to generate "proper" CIFTI files, the subcortical structures should follow the CIFTI naming conventions: e.g. CIFTI_STRUCTURE_THALMUS_LEFT, CIFTI_STRUCTURE_AMYGDALA_LEFT, etc...

Which tracts are included?

Connectivity blueprints may be constructed using the provided XTRACT tracts or using your own. By default, xtract_blueprint will use all tracts it finds under the xtract folder. You can specify a subset, or you own tracts, by providing a comma separated list of tracts using the -tract_list argument.

Certain tracts, e.g. the Middle Cerebellar Peduncle (MCP), do not project to the cortex. As such, they should be disregarded when interpreting the connectivity blueprint, or excluded from its construction.

Only interested in the connectivity of a specific area?

In many cases, the connectivity to a particular lobe, e.g. temporal or frontal, is of interest. You can use xtract_blueprint to obtain a connectivity blueprint for such a region:

  1. Define a binary mask which contains the region of interest as a shape.gii or func.gii file
  2. Select the tracts of interest: in all likelihood, only a subset of XTRACT's tracts will project to the ROI
  3. Supply the whole white matter surface file along with the ROI to xtract_blueprint, e.g. for the temporal lobe

Outputs of XTRACT blueprint

xtract_blueprint will create an output directory specified by the -out argument. This will contain any log and command files along with a sub-directory per seed. Each sub-directory contains the resultant connectivity matrix from stage 1. The connectivity blueprint will be saved in the parent output directory (a CIFTI dscalar.nii file).

Under outputDir: - Stage 1 (matrix2 tractography) output - omatrix2: - ptx_commands.txt - the probtrackx commands for tractography - <seed> - sub-directory containing tractography results for each seed supplied, each containing: - coords_fdt_matrix2 - the coordinates of the seed mask - lookup_tractspace_fdt_matrix.nii.gz - the target lookup space - tract_space_coords_for_fdt_matrix2 - the coordinates of the target mask - probtrackx.log - the probtrackx log file - fdt_paths.nii.gz - a NIFTI file containing the generated streamlines - fdt_matrix.dot - the sparse format connectivity matrix (used to calculate the blueprint) - waytotal - txt file containing the number of valid streamlines - Stage 2 (blueprint calculation) output - bp_commands.txt - the blueprint calculation commands - BP.<L,R,LR>.dscalar.nii - CIFTI file containing the whole-brain connectivity blueprint - logs - sub-directory containing job scheduler log files for both stages

Alternatively, the -savetxt option may be used to override this. In this case, two txt files will be saved: the first (BP.<L,R,LR>.txt) will be an n_seed by n_tracts array containing the blueprint; the second (tract_order.<L,R,LR>.txt) is an n_tracts by 1 array containing the tract order in which the blueprint is structured. Note: no CIFTI file will be generated. If a volume seed is provided, xtract_blueprint will generate a volume-space blueprint as a 4D NIFTI file.

XTRACT viewer

Visualising results in FSLeyes with xtract_viewer

The output of XTRACT is a folder that contains tracts in separate folders. We provide a convenient script (xtract_viewer) that can load these tracts (or a subset of the tracts) into FSLeyes using different colours for the different tracts but matching the left/right colours.

The script was written by Shaun Warrington.

Notice that in the FSL 6.0.2 release, xtract_viewer has not been included into the main $FSLDIR/bin path of executables, therefore it needs to be manually launched from

$FSLDIR/src/xtract/xtract_viewer

This has been corrected in FSL 6.0.3+

Usage

 __  _______ ____      _    ____ _____         _
 \ \/ /_   _|  _ \    / \  / ___|_   _| __   _(_) _____      _____ _ __
  \  /  | | | |_) |  / _ \| |     | |   \ \ / / |/ _ \ \ /\ / / _ \ '__|
  /  \  | | |  _ <  / ___ \ |___  | |    \ V /| |  __/\ V  V /  __/ |
 /_/\_\ |_| |_| \_\/_/   \_\____| |_|     \_/ |_|\___| \_/\_/ \___|_|



usage: XTRACT Viewer [-h] -xtract <folder> [-species <SPECIES>]
                     [-brain <nifti>] [-tract_list <list>]
                     [-thr <float> <float>] [-print_cmd]

xtract_viewer: quick visualisation of xtract results in fsleyes

options:
  -h, --help            show this help message and exit

Required arguments:
  -xtract <folder>      Path to XTRACT output folder
  -species <SPECIES>    One of HUMAN or MACAQUE or HUMAN_BABY or CUSTOM. Can
                        also specify the macaque template space to be used by
                        appending _[D99,INIA,NMT,YRK] (default is F99).

Optional arguments:
  -brain <nifti>        Path to custom brain teplate
  -tract_list <list>    Comma separated list of tracts to include (default =
                        all found under -xtract <folder>)
  -thr <float> <float>  Upper and lower threshold applied to tracts for
                        viewing (default = [0.001 0.1]).
  -print_cmd            Print the fsleyes command?

Example usage:
                        xtract_viewer -xtract /data/xtract -species HUMAN

XTRACT stats

Extracting tract-wise summary statistics with xtract_stats

A common usage of the XTRACT output is to summarise tracts in terms of simple summary statistics, such as their volume and microstructural properties (e.g. mean FA). We provide xtract_stats to get such summary statistics in a quick and simple way.

The script was written by Shaun Warrington.

You can use xtract_stats with any modelled diffusion data, e.g. DTI, bedpostx, DKI. It will provide raw and tract probability-weighted statistics.

Simply provide; the directory (and basename of files, if any) leading to the diffusion data of interest, the directory containing the XTRACT output, the warp field (or use 'native' if tracts are already in diffusion space). If tracts are not in diffusion space, you must also provide a reference image in diffusion space (e.g. FA map).

xtract_stats -d /home/DTI/dti_ -xtract /home/xtract -w /home/warp/standard2diff -r /home/DTI/dti_FA

The output (a .csv file) by default contains the tract volume (mm3) and the mean, median and standard deviation of the probability, length, FA and MD for each tract.

e.g. call for crossing fibre features and tract volume:

xtract_stats -d /home/DTI.bedpostX/mean_ -xtract /home/xtract -w /home/warp/standard2diff -r /home/DTI/dti_FA -meas vol,f1samples,f2samples

This call would result in a .csv file containing the tract volume and the mean, median and standard deviation of mean_f1samples and mean_f2samples for each tract.

Usage

__  _______ ____      _    ____ _____    _        _
\ \/ /_   _|  _ \    / \  / ___|_   _|__| |_ __ _| |_ ___
 \  /  | | | |_) |  / _ \| |     | |/ __| __/ _  | __/ __|
 /  \  | | |  _ <  / ___ \ |___  | |\__ \ || (_| | |_\__ \\
/_/\_\ |_| |_| \_\/_/   \_\____| |_||___/\__\__ _|\__|___/


usage: XTRACT Stats [-h] -xtract <folder> -d <folder_basename>
                    [-warp <nifti> <nifti>] [-out <path>] [-meas <list>]
                    [-tract_list <list>] [-thr <float>]

xtract_stats: summary tract-wise measures

options:
  -h, --help            show this help message and exit

Required arguments:
  -xtract <folder>      Path to XTRACT output folder
  -d <folder_basename>  Path to microstructure folder and basename of data
                        (e.g. /home/DTI/dti_)

Optional arguments:
  -warp <nifti> <nifti>
                        If tract are not in the same space as the data in
                        '-d', provide the reference image in diffusion space
                        (e.g. /home/DTI/dti_FA) and the xtract space to
                        reference space warp field
  -out <path>           Output filepath (Default <XTRACT_dir>/stats.csv)
  -meas <list>          Comma separated list of features to extract (Default =
                        vol,prob,length,FA,MD - assumes DTI folder has been
                        provided) vol = tract volume, prob = tract
                        probability, length = tract length Additional metrics
                        must follow file naming conventions. e.g. for dti_L1
                        use 'L1'
  -tract_list <list>    Comma separated list of tracts to include (default =
                        all found under -xtract <folder>)
  -thr <float>          Threshold applied to tracts (default = 0.001).

Example usage:
                        xtract_stats -xtract /data/xtract -d /data/Diffusion/dti_ -warp std2diff.nii.gz

XTRACT QC

Performing quality control (QC) with xtract_qc

We provide xtract_qc for a simple way to find failed XTRACT runs and potential outliers.

The script was written by Shaun Warrington.

__  _______ ____      _    ____ _____ ___   ____
\ \/ /_   _|  _ \    / \  / ___|_   _/ _ \ / ___|
 \  /  | | | |_) |  / _ \| |     | || | | | |
 /  \  | | |  _ <  / ___ \ |___  | || |_| | |___
/_/\_\ |_| |_| \_\/_/   \_\____| |_| \__\_\\____|


usage: XTRACT QC [-h] -subject_list <txt> -out <folder> [-tract_list <list>]
                 [-thr <float>] [-n_std <float>] [-use_prior]

xtract_qc: quality control at the group-level

options:
  -h, --help           show this help message and exit

Required arguments:
  -subject_list <txt>  Text file containing line separated subject-wise paths
                       to XTRACT folders
  -out <folder>        Path to output folder

Optional arguments:
  -tract_list <list>   Comma separated list of tracts to include (default =
                       all found under -xtract <folder>)
  -thr <float>         Threshold applied to XTRACT tracts for volume
                       calculation (default = 0.001).
  -n_std <float>       The number of standard deviations (either side of mean)
                       to allow before being flagged as an outlier (default =
                       2).
  -use_prior           If already run xtract_qc, use previously created
                       metrics (default = create new metrics and overwrite)

Example usage:
                        xtract_qc -subject_list sublist.txt -out /data/xtract_qc

Running XTRACT QC

xtract_qc is designed to work at the group level, identifying outliers by comparison to the group mean metrics. Therefore, a cohort of xtract results are expected.

Input:

Minimally, xtract_qc requires a subject list and an output directory.

The subject list should contain N subject lines where each line is the path to a subject's XTRACT results directory.

e.g. /data/sub-001/xtract /data/sub-002/xtract /data/sub-003/xtract

xtract_qc will then search for the tract results in each subject results directory.

Output:

The primary output of xtract_qc is a html file, which should be opened using a browser. This html report contains a quick summary of the cohort and suggests potential outliers (outliers are tracts, rather than subjects) based on the recorded waytotal (i.e. number of valid streamlines generated during XTRACT) and the tract volume. The report also provides a breakdown of the number of potential outliers per tract and stores potential outliers as a .csv file.

XTRACT Divergence

Comparing connectivity blueperints with xtract_divergence

After building your connectivity blueprints with xtract_blueprint, you can use xtract_divergence to compare connectivity blueprints across individuals, groups, and species, or use xtract_divergence to translate scalar cortical maps based on the similarity between connectivity blueprints

Note

Currently xtract_divergence only supports CIFTI format connectivity blueprints. NIFTI support is coming soon!

Citations

Mars R., Sotiropoulos S.N., Passingham R.E., Sallet J., Verhagen L., Khrapitchev A.A., Sibson N., Jbabdi S. (2018) Whole brain comparative anatomy using connectivity blueprints. eLife. DOI: 10.7554/eLife.35237

Warrington S.*, Thompson E.*, Bastiani M., Dubois J., Baxter L., Slater R., Jbabdi S., Mars R.B., Sotiropoulos S.N. (2022) Concurrent mapping of brain ontogeny and phylogeny within a common space: Standardzed tractography and applications. Science Advances, 8(42). DOI: 10.1126/sciadv.abq2022

Warrington S., Bryant K., Khrapitchev A., Sallet J., Charquero-Ballester M., Douaud G., Jbabdi S.*, Mars R.*, Sotiropoulos S.N.* (2020) XTRACT - Standardised protocols for automated tractography in the human and macaque brain. NeuroImage. DOI: 10.1016/j.neuroimage.2020.116923

__  _______ ____      _    ____ _____   _ _
\ \/ /_   _|  _ \    / \  / ___|_   _|_| (_)_   __
 \  /  | | | |_) |  / _ \| |     | |/ _` | \ \ / /
 /  \  | | |  _ <  / ___ \ |___  | | (_| | |\ V /
/_/\_\ |_| |_| \_\/_/   \_\____| |_|\__,_|_| \_/



usage: xtract_divergence [-h] -bpa <CIFTI> -bpb <CIFTI> -out <folder> -masksa
                         <GIFTI> <GIFTI> -masksb <GIFTI> <GIFTI>
                         [-metric <str>]
                         [-roi <path,<int>,[<int>,<int>,<int>],<str>]
                         [-base_scalars <GIFTI> <GIFTI>]
                         [-target_scalars <GIFTI> <GIFTI>] [-hemi <str>]
                         [-names <str> <str>] [-tract_list <list>]
                         [-ncores <int>]

xtract_divergence: Cross-brain divergence for divergence maps and translations

options:
  -h, --help            show this help message and exit

Required arguments:
  -bpa <CIFTI>          Path to CIFTI blueprint. This is the base blueprint
  -bpb <CIFTI>          Path to CIFTI blueprint. This is the target blueprint:
                        the space in which results will be saved
  -out <folder>         Path to output folder (plus any filename prefixes)
  -masksa <GIFTI> <GIFTI>
                        Path to GIFTI cortical left/right ROIs (excluding
                        medial wall) of the base blueprint
  -masksb <GIFTI> <GIFTI>
                        Path to GIFTI cortical left/right ROIs (excluding
                        medial wall) of the target blueprint

Optional arguments:
  -metric <str>         Kullback-Liebler (well-behaved KLD with additional
                        processing, default option), KLD (no additional
                        processing, KLD_bias), Jenson-Shannon (JSD)
                        divergence, or KLD (scipy implementation, KLDscipy)
  -roi <path,<int>,[<int>,<int>,<int>],<str>
                        ROI or greyordinate coordinates (vertex index or voxel
                        ijk indices) or CIFTI structure to calculate
                        divergence wrt whole-brain. '-roi' requires '-hemi' to
                        be defined.
  -base_scalars <GIFTI> <GIFTI>
                        The scalar maps (left/right GIFTIs) to translate
                        between brains
  -target_scalars <GIFTI> <GIFTI>
                        Scalar maps (left/right GIFTIs) in the target space
  -hemi <str>           If ROI prediction, the hemisphere of the ROI
  -names <str> <str>    Names of base and target brains
  -tract_list <list>    Comma separated tract list defining the set of tracts
                        to include - these must present in each brain
  -ncores <int>         For JSD, you may specify single-core (default) or
                        multi-core processing

Example call for human-to-macaque prediction of cortical MT+ ROI in the left hemisphere:
                xtract_divergence -bpa human_BP.LR.dscalar.nii -bpb macaque_BP.LR.dscalar.nii
                    -masksa humam_atlasroi.L.shape.gii human_atlasroi.R.shape.gii
                    -masksb macaque_atlasroi.L.shape.gii macaque_atlasroi.R.shape.gii
                    -roi human_MTplus.L.shape.gii -hemi L

                    "-roi" flag options:
                            <path> to NIFTI/GIFTI binary mask. Mean blueprint in ROI used to calculate divergence to target whole-brain.
                            <int> single greyordinare vertex index. i.e. divergence between cortical location and whole-brain.
                            [<int>,<int>,<int>] ijk greyordinates. i.e. divergence between subcortical location and whole-brain.
                            <str> CIFTI subcortical structure. Options are those available as subcortical structures in the CIFTI convention CIFTI_STRUCTURE_* e.g. "CIFTI_STRUCTURE_THALAMUS_LEFT".
                            If no option supplied, will calculate dense (whole-brain to whole-brain) divergence.

Options

There are three main modes for running xtract_divergence: - whole-brain dense divergence - ROI (including single greyordinates or ROIs) to whole-brain divergence - using divergence to translate scalar maps

Whole-brain divergence

With this option, you can obtain a dense divergence matrix describing the divergence between all greyordinates in one brain to all greyordinates in another. You provide two connectivity blueprints (BPa and BPb) and their medial wall masks, e.g. call:

xtract_divergence -bpa BPa.LR.dscalar.nii -bpb BPb.LR.dscalar.nii -out ./results -masksa ./medwalla.L.shape.gii ./medwalla.R.shape.gii -masksb ./medwallb.L.shape.gii ./medwallb.R.shape.gii

The result is a CIFTI file in the same space as the second blueprint (BPb), with N volumes (where N corresponds to the number of greyordinates in BPa). Depending on the resolution of your data, this file can be very large!

ROI to whole-brain divergence

With this option, you can obtain divergence map between a given ROI in one brain to all greyordinates in another. You provide two connectivity blueprints (BPa and BPb), their medial wall masks, and some ROI (defined in the same space as BPa).

The -roi flag takes several types of input: - : can be the path to a NIFTI or GIFTI binary mask - : a single integer giving an index of a cortical greyordinate (i.e. surface vertex coordinate) - [,,]: three integers giving the set of coordinates of a single subcortical greyordinate - : a string matching a subcortical CIFTI structure ('ACCUMBENS', 'AMYGDALA', 'CAUDATE', 'HIPPOCAMPUS', 'PALLIDUM', 'PUTAMEN', 'THALAMUS' with the suffix specifying _LEFT or _RIGHT)

Note

You must also specify which hemisphere the ROI is in, using -hemi <L/R>.

e.g. call:

xtract_divergence -bpa BPa.LR.dscalar.nii -bpb BPb.LR.dscalar.nii -out ./results -masksa ./medwalla.L.shape.gii ./medwalla.R.shape.gii -masksb ./medwallb.L.shape.gii ./medwallb.R.shape.gii -roi AMYGDALA_LEFT -hemi L

The result will be a map showing the distribution of divergence values in the same space as BPb. Each greyordinate's value is the divergence between the greyordinate in BPb to the average connectivity fingerprint of the ROI in BPa.

Translating scalar cortical maps

With this option, you can translate a scalar cortical map (for example a myelin map, activation map, etc..) from one brain to another based on the similarity in connectivity blueprints. You provide two connectivity blueprints (BPa and BPb), their medial wall masks, and a set of base and target scalar maps.

The base maps are the maps you wish to translate to the new space. These should be in the same space as BPa. The target scalar map is simply used to ensure that the resultant prediction is saved with the correct header information. These target maps should be in the same space as BPb.

e.g. call:

xtract_divergence -bpa BPa.LR.dscalar.nii -bpb BPb.LR.dscalar.nii -out ./results -masksa ./medwalla.L.shape.gii ./medwalla.R.shape.gii -masksb ./medwallb.L.shape.gii ./medwallb.R.shape.gii -base_scalars ./myelina.L.func.gii ./myelina.R.func.gii -target_scalars ./myelinb.L.func.gii ./myelinb.R.func.gii
The result is a prediction of the scalar map in the space of BPb, generated by warping the base scalar map based on the similarity of connectivity blueprints.
