Topup user's guide

Running topup

A call to topup will typically look something like

topup --imain=my_b0_images.nii --acqp=acqparam.txt --config=b02b0.cnf --out=my_output

where my_b0_images.nii is a 4D image file containing all the data I want to use for the estimation of the field. Typically this will contain two, or possibly more, b=0 volumes that have been acquired in different ways so that translation off-resonance field->distortions is different in the different volumes.

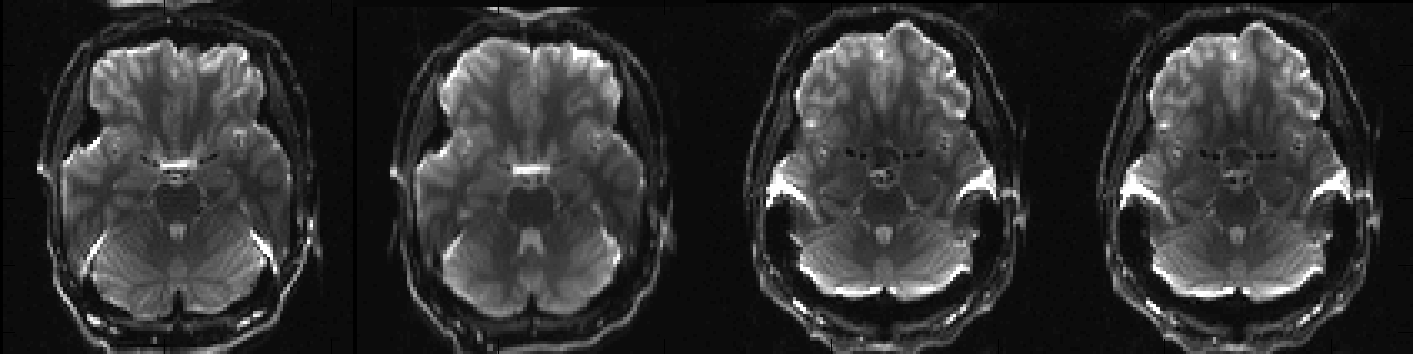

EPI images acquired with different PE-directions before correction

Above you can see a selected slice from the four volumes in an example file called my_b0_images.nii.gz. It is immediately obvious that the distortions in the first two images are vastly different from those in the two last images. If we take a look at the associated acqparams.txt file

0 -1 0 0.062
0 -1 0 0.062
0 1 0 0.062
0 1 0 0.062

we can see why. The two first images have been acquired with negative phase-encode blips in the y-direction, which means that signal from an area with "higher than expected" field (such as just above the ear-canals) will be displaced downwards. Conversely the two last images have been acquired with positive blips which means that signal from those same areas would be displaced upwards.

In addition to that we can see that the second image looks a little bit different to the first, despite having been acquired with identical parameters. This probably means that the subject moved between the acquisitions of the two images.

Let us now run topup. We will use the command

topup --imain=my_b0_images --acqp=acqparams.txt --config=b02b0.cnf --out=my_topup_results --fout=my_field --iout=my_unwarped_images

Here we have asked for a little bit more detailed output by specifying also --fout and --iout. One would normally be content with just the --out output, but for pedagogical reasons we will look also at the other output for this demonstration run.

So, let us first take a look at my_unwarped_images.nii.gz to see if topup has done a decent job at correcting the distortions.

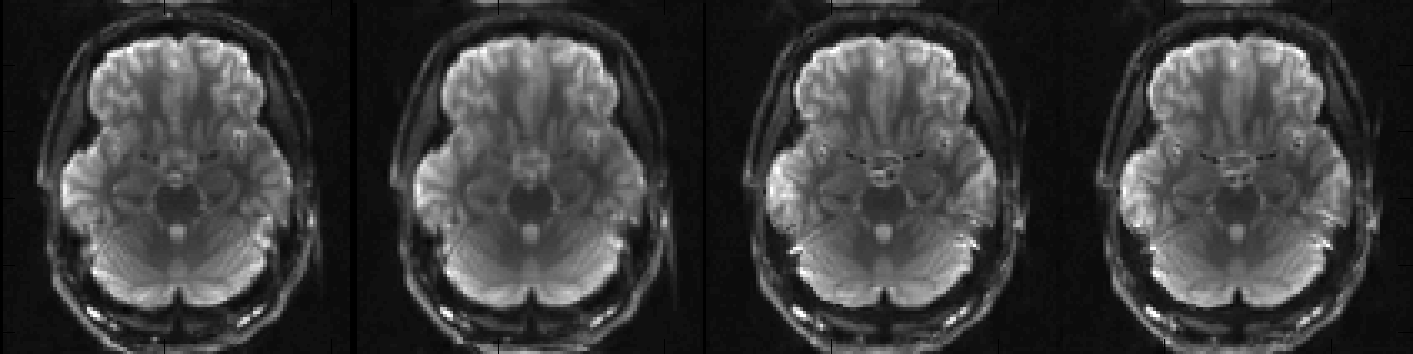

EPI images acquired with different PE-directions after correction

I think we can agree that that looks quite good and that we have no reason to think that topup ran into any problems. Let us now look at my_topup_results_movpar.txt to see if we were right in our suspicion that there had been some movement.

0  0  0  0  0  0
-0.073237  0.025761  -0.046236  -0.088544  -0.00099632  0.0020353
-0.131236  0  -0.153924  0.000365648  -0.00146637  -0.000709675
-0.147020  0.284489  -0.16171  -0.00209923  -0.00193369  -0.000452118

In order to fully understand this file you need to have a look at the full description of the *_movpar.txt file, but for now we just focus on the second row (corresponding to the second volume in my_b0_images.nii.gz) and the fourth column (corresponding to rotation (in radians) around the x-axis). We see there a value of -0.089 radians, which corresponds to a five degrees rotation. So it seems we were right in our suspicion that the subject had moved.

We next take a look at my_field.nii.gz (the output from --fout) to see what topup thinks the off-resonance field looks like.

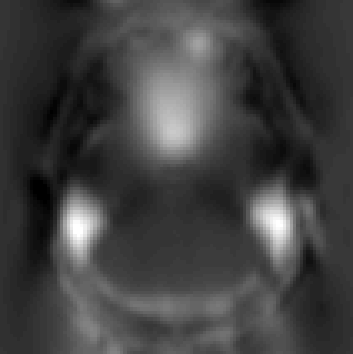

--fout output

which has been scaled so that black corresponds to -50Hz and white to 150Hz. This looks like a reasonable off-resonance field with higher than "expected" field above the ear-canals and the roof of the sinuses.

Finally we will take a look at how topup stores this field by looking at my_topup_results_fieldcoef.nii.gz.

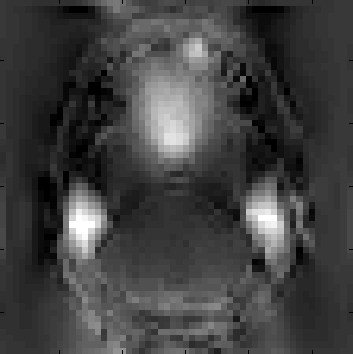

Field coefficients output

We see that while instantly recognisable it is not identical to the field image. It is the weights/coefficients of a spline-representation of the field, which means that to get from the *_fieldcoef.nii.gz image to the field image one needs to convolve the former with a spline kernel. This is of course automatically done by all FSL applications that are "topup aware". The reason topup stores it as spline coefficients is because it saves space and also gives immediate access to a continuous representation of the field.

What data to acquire in order to use topup

All you need is two images acquired with opposing PE-direction (also known as "different polarity PE-blips" or even "blip-up-blip-down data"). This would typically be two \(b=0\) images, i.e. two SE-EPI images. When the purpose of estimating the off-resonance field is to apply it to a diffusion data set it is very strongly recommended that the first of those two images is the first \(b=0\) image of the full diffusion data set. If that \(b=0\) image is used as the first image in the 4D --imain image file in topup, and is the first image in the --imain image file in eddy, the resulting fieldmap will automatically be perfectly aligned with the diffusion data when running eddy.

We further recommend that one acquires more than just one each (we usually suggest getting three) of the two acquisitions with opposing PE-directions. The reason for that is to have "spares" in case the subject happens to make a sudden movement during the acquisition of one of the volumes (intra-volume movement). If that happens, and that is the only \(b=0\) volume one has acquired with that PE-direction, it may not be possible to estimate the field and the whole diffusion data set may need to be discarded. So a good protocol would be to acquire three \(b=0\) volumes with one PE-direction followed by a full diffusion data set, starting with three \(b=0\) volumes, with opposing PE-direction.

We typically don't recommend passing more than a single pair to topup though. The examples with more than one pair in this manual is more to exemplify what is possible. Also, before we had extensive experience of running topup we assumed that more than one pair would help with robustness. As it turns out it doesn't seem to make any difference, and only means that topup takes longer to run. But on the other hand it doesn't seem to make any harm to use more than one pair, save for longer execution time.

Life after topup --  eddy

The typical use of topup is to use a pair of \(b=0\) images, or possibly two pairs if the SNR is poor, to estimate a susceptibility-induced off-resonance field, and then apply that to (i.e. use it to unwarp) a diffusion data set. It is recommended that the first volume in --imain is taken from a larger set of b=0 and diffusion weighted images. The resulting field can then be applied to all images, i.e. the b=0 and diffusion weighted images alike, by running eddy. In addition to applying the off-resonance from topup, eddy will estimate subject movement, eddy currents, signal loss etc. Follow one of the links if you want to learn more about eddy.

Configuration files

A configuration file is a text file containing some or all of the parameters that can be specified for topup. The name of the file should be passed as argument to the --config parameter. It should be an ascii-file with one row for each parameter, and where comments (ignored by topup) are preceeded by a #.

A very simple (and silly) config file named my_silly_file.cnf could look like

# I want to use membrane energy for regularisation
--regmod=membrane_energy

It becomes more useful when it specifes all or most parameters with values suited for ones particular application.

When a parameter is specified both in the config-file and on the command line, the value on the command line takes precedence. For example with the example above we could run topup with

topup --imain=blip_up,blip_down --acqp=blips_up_and_down.txt --config=my_silly_file --regmod=bending_energy

and the --regmod=bending_energy on the command line will take precedence over the specification in my_silly_file.cnf.

When you specify --config=my_file, i.e. without explicit path or extension, fnirt will search for ./my_file, ./my_file.cnf, ${FSLDIR}/etc/flirtsch/my_file and ${FSLDIR}/etc/flirtsch/my_file.cnf in that order and use the first one that is found.

Supplied configuration files

As part of the topup distribution we supply a set of predefined config files: b02b0_1.cnf, b02b0_2.cnf, b02b0_4.cnf and b02b0.cnf (the latter being an alias for b02b0_2.cnf). They contains parameters that have been found to be useful for registering a pair (or possibly more than one pair) of good quality b=0 images. Together with the override facility one of these is probably the starting (and most likely finishing) point for most users.

Note that b02b0.cnf (and hence b02b0_2.cnf) uses a factor 2 sub-sampling to speed up the estimation and that topup requires that the image-size is an integer multiple of the sub-sampling level. So, if you want to use b02b0.cnf the image-size should be a multiple of 2 in all directions (e.g. 96x96x50). If your image-size is an integer multiple of 4 in all directions (e.g. 96x96x48) you can use the even faster b02b0_4.cnf. If your image-size is an odd number in any direction (e.g. 96x96x51) you will need to use b02b0_1.cnf. Note that the sub-sampling mainly just affects the execution speed and that the results will be very close to identical regardless of which of these configuration files you use.

In the past we only supplied b02b0.cnf (i.e. b02b0_2.cnf), and recommended that one either duplicates or removes the ultimate slice in one direction. When we implemented slice-to-volume registration in eddy, which meant that eddy needs to know the exact multi-band structure of the data, we realised what a truly terrible idea that was. Hence, we no longer recommend that. Instead we recommend just using the configuration file that is appropriate for your data.

If you have an application for which you think the predefined config file isn't appropriate you may want to read about the individual parameters below and write your own file. We would then recommend to start with the predefined file and gradually change it to suit your particular requirements.

List of parameters

Commonly used parameters

  • Parameters that specify input files

  • --imain=filename
    Name of a file with input images optained with different PE polarity/direction. E.g. my_b0_images.nii.

  • --acqp=filename
    Name of text file with information about the acquisition of the images in --imain. E.g. my_parameters.txt

  • --datain=filename
    Alternative to --acqp for specifying name of text file with information about the acquisition of the images in --imain. E.g. my_parameters.txt

  • --config=config_file
    Name of text-file with parameter settings. If you read about nothing else, read about this.

  • Parameters specifying names of output-files

  • --out=filename
    Base name of output-files containing the spline coefficients for the off-resonance field and the subject movement parameters.

  • --featout=filename
    Base name(s) of output-files suitable for use with FEAT.

  • --fout=filename
    Name of output-file containing the off-resonance field in Hz.

  • --iout=filename
    Name of output-file containing unwarped images.

  • --logout=filename
    Name of output-file containing the log.

  • Miscallenous parameters

  • --verbose
    Print progress information to the screen while running. Can be useful to include when reporting problems.

  • --nthr
    Choose number of threads to use for multi-threading.

  • --help
    Take a wild stab.

Parameters that you only need to be concerned about if you want to write/change/override a config file

  • Parameters specified once per subsampling/resolution level

  • Parameters specified once and for all

    • --ssqlambda=0/1
      If set to 1, implies that --lambda should be multiplied by sum-of-squared differences. Default is 1.

    • --regmod=model
      Specifies what regularisation-model should be used. E.g. membrane_energy. Default is bending_energy

    • --splineorder=num
      Order of B-spline (2/3). Default is 3.

    • --numprec=float/double
      Numerical precision for calculating and representing the Hessian. Default is double

    • --interp=linear/spline
      Interpolation model for deducing intensities when not on voxel centres. Default is spline

    • --scale=0/1
      If set to 1 the volumes in --imain are scaled to a common mean. Default is 0.

Commonly used parameters explained

--imain

The value for this parameter should be the name of an image file (typically .nii or .nii.gz) containing images acquired with different phase-encoding parameters. All types of images can be used to estimate the distortions, but the b0 images have the best SNR so it is often best to use those. Furthermore it is often the case that diffusion weighted images are also affected by eddy current (EC) induced distortions, which means that any off-resonance field estimated from a pair of dwis will include the EC component as well, making it specific to that field. Let us say you have acquired a bunch of b0 and dwi images using positive phase-encode blips in the 4D file bup.nii and another bunch of b0 and dwi's acquired with negative PE blips in tdn.nii. You would then start by extracting the images you want to use (e.g. the b0 images) using fslroi. For example fslroi bup b0_bup 0 3 would extract the three first volumes (assuming these are the b0 images) from bup.nii, putting them in b0_bup.nii. After having done the same thing for tdn.nii you can merge the two files using fslmerge, e.g. fslmerge -t b0 b0_bup b0_bdn which will put all 6 b0 images in the same file (b0.nii) with the three acquired with positive phase-encode blips first.

--acqp/--datain

This parameter (--acqp or --datain) specifies a text-file that contains information about how the volumes in --imain were acquired. Let us use the file b0.nii that we created above as an example. The file should in that case look like

0 1 0 0.087
0 1 0 0.087
0 1 0 0.087
0 -1 0 0.087
0 -1 0 0.087
0 -1 0 0.087

where the three first columns specify the direction of the phase-encoding. In these cases there is a non-zero value only in the second column, indicating that phase-encoding is performed in the y-direction (typically corresponding to the anterior-posterior direction). The three first rows have a (positive) 1 in the second position, meaning that positive phase-encode blips were used, followed by three rows with -1 signifying negative phase encode blips. The fourth column is the total readout time (defined as the time from the centre of the first echo to the centre of the last) in seconds. If your readout time is identical for all acquisitions you don't neccessarily have to specify a valid value in this column (you can e.g. just set it to 0.05), but if you do specify correct values the estimated field will be correctly scaled in Hz, which may be a useful sanity check. Also note that this value corresponds to the time you would have had had you collected all k-space lines. I.e. let us say you collect a 96x96 matrix with 1ms dwell-time (time between centres of consecutive echoes) and let us further say that you have opted for partial k-space (in order to reduce the echo time), collecting only 64 echoes. In this case the level of distortion will be identical to what it would have been had you collected all 96 echoes, and you should put 0.095 in the fourth column.

Topup gives you lots of freedom in how to acquire your data and still be able to calculate and correct for distortions. You can e.g. use

1 0 0 0.087
0 1 0 0.087

indicating that the first scan was acquired with phase-encoding in the left-right direction and the second in the anterior-posterior direction. One can even acquire ones data like

0 1 0 0.087
0 1 0 0.107

i.e. with distortions going in the same direction in both acquisitions but with slightly larger distortions in one case (the latter in this example). Despite this flexibility it is nevertheless best to manipulate the phase-encoding so that it yields the maximum difference in the observed images, and that will a reversal of the blips. So unless one has a very good reason to do otherwise that is the recommended type of acquisition.

N.B. This parameter used to be named --datain, but the --datain file is the same as the --acqp file for eddy. For historical reasons the parameters unfortunately had different names. It has irked me for a long time, and I have now added --acqp as an alternative parameter for specifying the file in topup. The option to use --datain has been retained to ensure backwards compatibility. It is always the case that the --acqp file from topup can be "recycled" and used for the eddy --acqp parameter. Even though the --acqp file from topup will have (at least) two rows, indicating two different phase-encodings, it can still be used with eddy on a data set with a single phase-encoding by supplying an --index file with only ones.

N.B. 2 that topup's definition of positive is simply given by increasing indicies into the image file and may or may not coincide with how a given scanner manufacturer has defined the positive direction for phase-encode blips. If both your acquisitions perform phase-encoding along the same axis, but with different signs/readout-times, topup will still be able to calculate and correct for the distortions, though the estimated off-resonance field may be sign reversed. However, if ones acquisitions have been performed with phase-encoding along different axes it is important to get the signs to correspond to the definition by your scanner manufacturer. I recommend simply trial and error to work it out.

N.B. 3 please do NOT confuse phase-encode direction and diffusion gradient direction. They are completely independent.

--out

The value for the --out parameter is used as the basename for the output files produced by topup. Given a set of files, let us use the example in --imain above, topup will estimate a field, that is common to all scans, and movement parameters for scans 2-n. The movement parameters will encode the positions of scans 2-n relative to scan 1.

Hence, given --out=my_out, topup will write two files, one image file containing spline coefficients encoding the field (named my_out_fieldcoef.nii or my_out_fieldcoef.nii.gz depending on the global FSL settings) and one text file named my_out_movpar.txt. In the six scan example above the .txt output was

0 0 0 0 0 0
-0.0323452 0.0257616 -0.131612 -5.99714e-05 -0.00182856 -0.000162457
-0.0244460 0.2844895 -0.129879 -1.05641e-05 -0.00173325 -3.44437e-05
0.391246 0 -0.514049 -0.00478399 -0.00929278 0.00235141
0.402124 -0.131236 -0.531344 -0.00554897 -0.00924577 0.00213802
0.420413 -0.147020 -0.513022 -0.00566367 -0.00943247 0.00218128

where we can notice that the first scan is represented by a row of zeros. The three first columns represent translations (mm) in the x-, y- and z-directions respectively and the next three columns represent rotations (radians) around the x-, y- and z-axes. Notice also that the second column has a zero for the fourth scan (the first scan with a different blip-direction). This is because the distortions go along this direction and there is no way to disambiguate a subject translation in this direction from an offset in the displacements constituting the distortions.

N.B. that there is no general non-ambigous way to encode a transformation matrix by a set of translations and rotations. Hence it would in general be a bad idea to use the values in the .txt output from --out to make your own transformation matrices (if for some reason you would need these). Instead you should use the tools that have been designed to work together with topup: eddy, and possibly applytopup.

--featout

Specifies names for files that can be used directly in FEAT for distortion correction. The value of the --featout parameter is used as the basename for two files named my_fname_fieldmap_rads and my_fname_fieldmap_mag (provided you specified --featout=my_fname). It is intended as a "convenience" for people wanting to use a topup-style fieldmap in FEAT. The _fieldmap_rads is just a rescaled --fout map, and the _fieldmap_mag is the same as the average map given by --iout.

--fout

Specifies the name of an image file containing the estimated field in Hz. The actual information is the same as that in the *_fieldcoef.nii.gz file from the --out parameter. They are different in that the --fout image contains the actual voxel-values (as opposed to spline coefficients) which makes it easier to use with applications that cannot read the topup output format. It is for example useful if you want to feed it as a fieldmap into FEAT.

--iout

Specifies the name of a 4D image file that contains unwarped and movement corrected images. Each volume in the --imain will have a corresponding corrected volume in --iout. This output uses traditional interpolation and Jacobian modulation (see applytopup) and is used mainly as a sanity check that things have worked by running a movie of it in FSLeyes and check that any "movement" between the corrected volumes is minmal. In addition to the 4D file there will also be a 3D file with, given that one specified --iout=my_fname, the name my_fname_mean, which is an unmasked (i.e. with full FOV) average of the images in the 4D file. It can be useful for making an undistorted mask for use in eddy and/or dtifit by running BET on it.

--nthr

Specifies the number of threads that you want to use for CPU multi-threading when running topup. It will never allocate more threads than the number of available hardware threads. So the number of threads actually used are the smallest number of --nthr and the number of hardware threads.

It can be very handy if you want to run topup very quickly, for example to check on some result. However, if you are on a cluster and are analysing as large number of subjects it might well be faster to submit all subjects without the --nthr option since any parallel processing comes with some overhead.

Parameters that you only need to be concerned about if you want to write/change/override a config file

--subsamp

A multi-resolution approach is a way of avoiding local minima. It consists of sub-sampling, estimating the warps at the current scale, up-sample, estimating the warps at the next scale etc The scheme for the multi resolution approach is given by the --subsamp parameter. So for example

topup --imain=my_b0_images --acqp=my_acquisition_parameters --subsamp=4,2,1

means that data will be subsampled by a factor of 4 and the transform will be calculated at that level. It will then be subsampled by a factor of 2 (i.e. an upsampling compared to the previous step) and the warps will be estimated at that scale, with the warps from the first scale as a starting estimate. And finally this will be repeated at the full resolution (i.e. subsampling 1).

The value of the --subsamp parameter will determine the "number of registrations" that are performed as steps in the "total" registration. There are a number of other parameters that can the be set on a "sub-registration" or on a "total registration" basis. So for example

topup --imain=my_b0_images --acqp=my_acquisition_parameters --subsamp=4,2,1 --fwhm=8,4,0

Means that you request three "sub-registrations" with sub-samplings 4, 2 and 1 respectively and that for the first registration you want the your images smoothed with an 8mm FWHM Gaussian filter, for the second with a 4mm filter and for the final step no smoothing at all. On the other hand

topup --imain=my_b0_images --acqp=my_acquisition_parameters --subsamp=4,2,1 --fwhm=8

means that you want the images smoothed to 8mm FWHM for all registration steps. These other parameters must either be specified once, and will then be applied to all sub-registrations, or as many times as there are sub-registraions. The parameters for which this is true are

The sub-sampling steps have to be monotonously decreasing, but do not have to be unique. One may for example want to run all steps at the full resolution, but with decreasing amount of regularistaion, as an optional strategy for avoiding local minima. That can be done e.g. with a command like

topup --imain=my_b0_images --acqp=my_acquisition_parameters --subsamp=1,1,1 --lambda=100,50,25

--warpres

Specifies the resolution (in mm) of the warps. Specifying e.g. --warpres=10 means that an isotropic knot-spacing of 10mm is used for all levels of --subsamp. If instead specifying e.g. --warpres=10,5 indicates that a (n isotropic) knot-spacing of 10mm should be used for the first level of --subsamp followed by 5mm for the second level. A warp resolution of e.g. 10mm does not imply that 10mm is the highest accuracy that can be obtained for registration of any given structure. It is rather related to how fast the field can change as on goes from one point to the next in the field. The warps/field are implemented as cubic/quadratic B-splines with a knot-spacing that has to be an integer multiple of the voxel-size of the --imain images. If a value is specified for --warpres that is not and integer multiple the value will be rounded down. So if for example the voxel-size of the --imain image is 3x3x4mm and --warpes is specified as --warpres=10 the actual resolution (knot-spacing) of the warps will be 9x9x8mm.

When running topup it is advantageous to go to a quite high warp-resolution, typically all the way to the voxel size (i.e. one spline per voxel). To achieve an actual knot-spacing of 1 voxel in all directions one should specify a knot-spacing smaller than two voxels in the direction with the smallest voxel size. If one e.g. has isotropic voxels with size 2.5x2.5x3.5mm, specifying --warpres=4 (4<2*2.5) will give an actual knot-spacing of 2.5x2.5x3.5mm (i.e. 1x1x1voxels).

Increasing the resolution means that topup will need more execution time and more memory. Most of the time and memory is spent on estimating and representing the Hessian. It may therefore be advantageous to swith to an alternative minimization method (i.e. Scaled Conjugate Gradient, specified by --minmet=1) for the final high resolution steps.

--miter

Specifies the number of iterations that should be performed for each sub-registration. At present there is no proper convergence criterion implemented in topup. Instead a fixed number of iterations is used for each step.

The two minimization methods implemented in topup calculates and uses quite different amounts of information at each iteration. As a rule of thumb Levenberg-Marquardt (--minmet=0) uses relatively few, expensive, iterations whereas the Scaled Conjugate Gradient (--minmet=1) method needs more, albeit less expensive, iterations.

Note also that it is typically not critical to run to full convergence at the higher levels since these just serve as starting estimates for the lower levels.

--fwhm

Specifies the amount of smoothing that should be applied to the images in --imain. It is typically a good idea to match this to the amount of sub-sampling you are using. An example would be the command

topup --imain=my_b0_images --acqp=my_acquisition_parameters --subsamp=4,2,1 --fwhm=8,4,0

which smoothes the --imain images with an 8mm FWHM Gaussian filter prior to subsampling with a factor of 4 for the first level of sub-registration. For the second level it smoothes it by 4mm prior to subsampling by a factor of 2. For the final level it applies no smoothing at all.

--lambda

--estmov

Specifies wether or not to estimate the movement parameters (--estmov=1) or keep them fixed (--estmov=0) for that level. It is typically set to 1 for the early sub-sampling levels and changed to 0 for the later. The idea there is that already when we have estimated the warps at an intermediate resolution will we have estimated the movement parameters with sufficient precision to allow us to fix them for the reminder of the estimation. See the entry for --minmet below for an explanation of why that is beneficial.

--minmet

Specifies what minimisation method to use. The default (corresponding to --minmet=0) is Gauss-Newton which uses explicit calculations of the gradient and Hessian to achieve convergence in a small number of iterations. A particular strength of Gauss-Newton is that it works well even when the values in the gradient have vastly different scales. Imagine for example changing the value of a spline coefficient by 1. That will change the warps in a very small part of the brain and might change the sum-of-squared differences by ~0.1%. Imagine now changing the value of the rotation parameter for rotation around the z-axis by 1 (N.B. 1 radian is ~57degrees). This will have a huge impact on the sum-of-squared differences and could easily change it by 1000%. So we have ~4 orders of magnitude in difference between these components of the gradient. This is a case that many (most) minimisation algorithms struggle very badly with, and in our experience it is really only Gauss-Newton (and derivates thereof) that is successful in these cases. Therefore we always recommend using Gauss-Newton (--minmet=0) when estimating warps and movements. A problem with Gauss-Newton is that the calculation of the Hessian is time consuming and in particular the storage of it is very RAM demanding. When estimating the warps at full resolution the RAM requirement for the Hessian corresponds to ~700 image volumes. It can therefore be preferable to switch to the Scaled Conjugate Gradient method (--minmet=1) when estimation the warps at the highest resolution. As explained above that can be a problem if one also tries to estimate the movement parameters. We therefore recommend keeping these constant (see --estmov above) when estimating the warps at the highest resolution levels.

--ssqlambda

The use of several sub-sampling steps (with different values of --lambda) helps prevent the registration from venturing into local minima. However, within a given sub-sampling step that regularisation is constant, and that could in turn cause the algorithm to take a "poor" initial step for that resolution level. By weighting --lambda by the current value for the sum-of-squared differences the effective weight of the regularisation becomes higher for the initial iterations (when we are far from the solution and the sum-of-squares is large). That means that the initial step/steps are a little smoother than they would otherwise be, and hopefully that reduces the risk of finding a local minima.

--ssqlambda is set to 1 as default, and it is typically a good idea to keep it like that. N.B. that the setting of --ssqlambda influences the recommended value/values for --lambda. The (average over all voxels) of the sum-of-squared differences is typically in the range 100-1000, and if --ssqlambda is set to 0 the value/values for --lambda should be adjusted up accordingly.

--regmod

The value of --lambda determines the relative weight between the sum-of-squared differences and some function &epsilon of the warps. However, it is not clear what the exact form of that function (\(\varepsilon(\mathbf{w})\)) should be. We clearly desire "smoothness" in the warps so that points that are close together in the original space ends up (reasonably) close together in the warped space, but there are many potential options for how a particular local warp should be penalised by \(\varepsilon(\mathbf{w})\). In topup we have implemented two different choices for \(\varepsilon(\mathbf{w})\): Membrane Energy (--regmod=membrane_energy) or Bending Energy (--regmod=bending_energy). Note that the two functions have vastly different scales. The membrane energy is based on the first derivatives and the bending energy on the second derivatives. The second derivatives will typically be much smaller than the first derivatives, and consequently \(\lambda\) will have to be larger for bending energy to yield approximately the same level of regularisation.

--splineorder

Specifies the order of the B-spline functions modelling the off-resonance field. A spline-function is a piecewise continuous polynomial-function and the order of the spline determines the order of the polynomial and the support of the spline. In topup one can use splines of order 2 (quadratic) or 3 (the "well known" cubic B-spline). A spline of lower order (2 in this case) has a smaller support, i.e. it "covers" fewer voxels, for a given knot-spacing/warp-resolution. This means that the calculation of the hessian matrix H in the minimisation will be faster, and also that H will be sparser and thus use require less memory. That means that going to --splineorder=2 (compared to the default 3) will allow you to push the resolution of the warps a little further and/or save execution time and memory.

The downside with a 2nd order spline is that the resulting field will not have continuous 2nd derivatives which creates some difficulties when using bending energy for regularisation. However, the approximations we are using seem to work so it is not obvious if there really is an issue. We are using --splineorder=3 as default in topup because we have more experience with using that. It is not inconcievable that that will change as we gain more experience.

--numprec

Its value can be either float or double (default) and it specifies the precision that the hessian H is calculated and stored in. Changing this to float will decrease the amount of RAM needed to store H and will hence allow one to go to slightly higher warp-resolution before running into swapping problems. The default is double since that is what we have used for most of the testing and validation.

--interp

When the transform x->x' maps to a point that is not on a voxel centre in a --imain volume, the pertinent intensity value will have to be deduced from the intensities at the surrounding voxel centres. This process is known as interpolation. In topup there are two choices, tri-linear interpolation or cubic B-spline interpolation. In general, spline interpolation is more accurate at the cost of slightly longer execution time. Unlike the case for e.g. fnirt, spline interpolation seems to yield significantly better results than linear interpolation for topup. We are still in the process of verifying this, but given how small the execution time penalty is there isn't much to loose in using it. Hence spline is the default.

--scale

The registration is based on minimizing the sum-of-squared differences between the volumes in --imain. Hence it is important that the intensities are comparable in the different acquisitions. If the same calibration scan was used for all acquisitions the intensities should be scaled identically and no re-scaling should be neccessary. If not it can be useful to re-scale the images to a common global mean by setting --scale=1. Default is 0, i.e. no re-scaling of the images.

--regrid

When --regrid=1 (default) the registration will be performed to a target with a different grid-spacing than the input images. This is done to prevent topup from "finding" small movements when the subject has remained completely motionless. The only reason to ever change this parameter is if you are a registration boffin and want to see what difference it makes.
