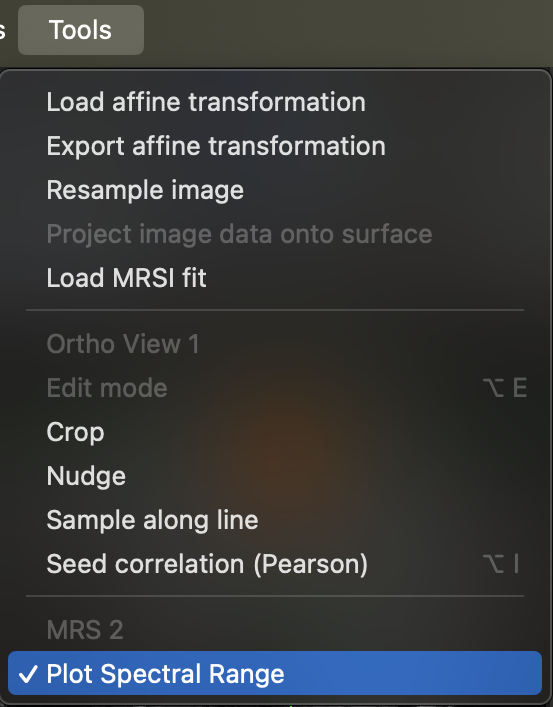

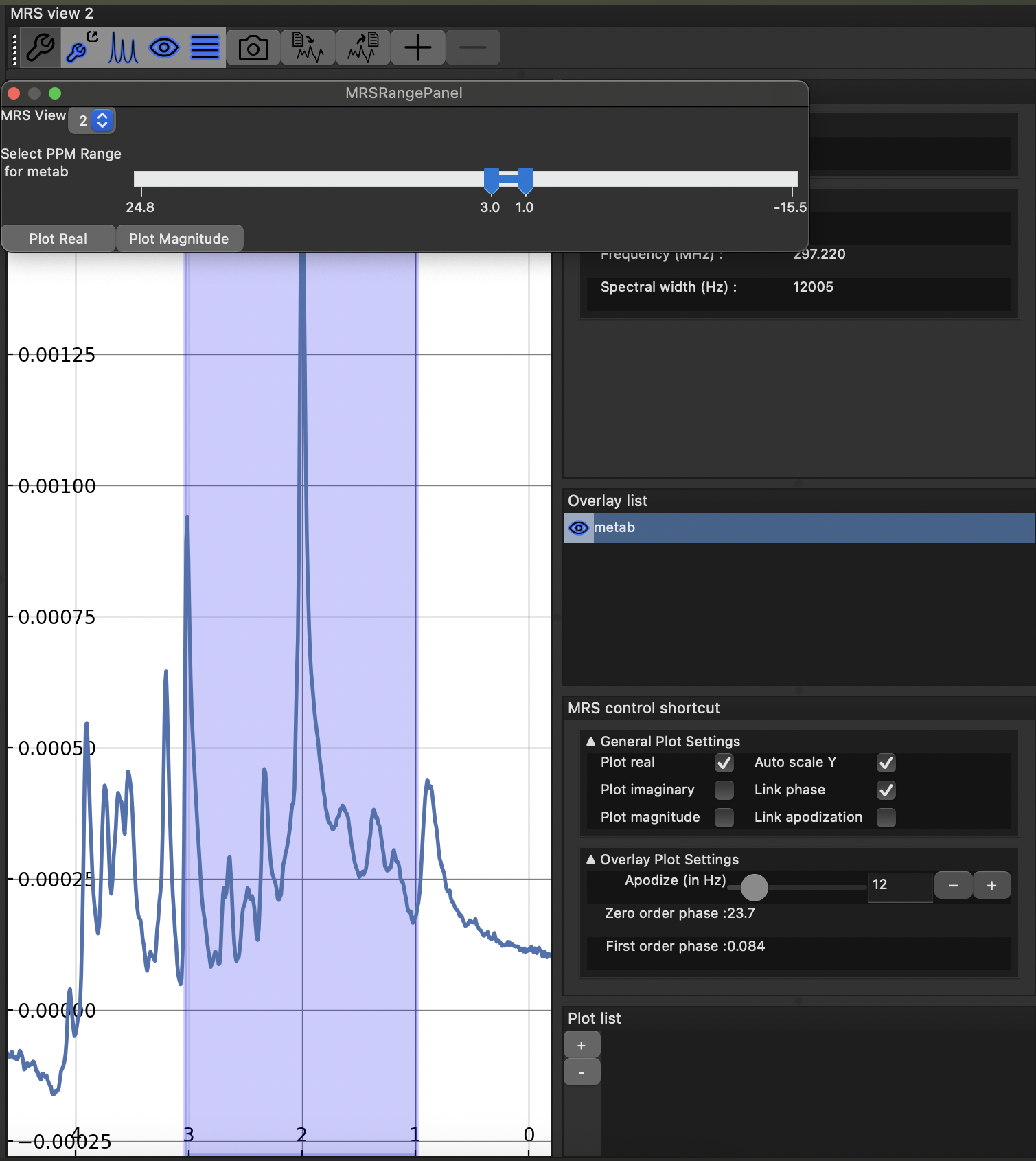

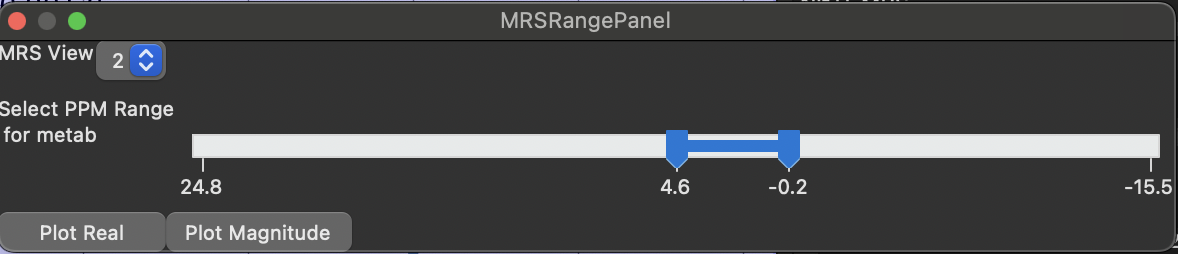

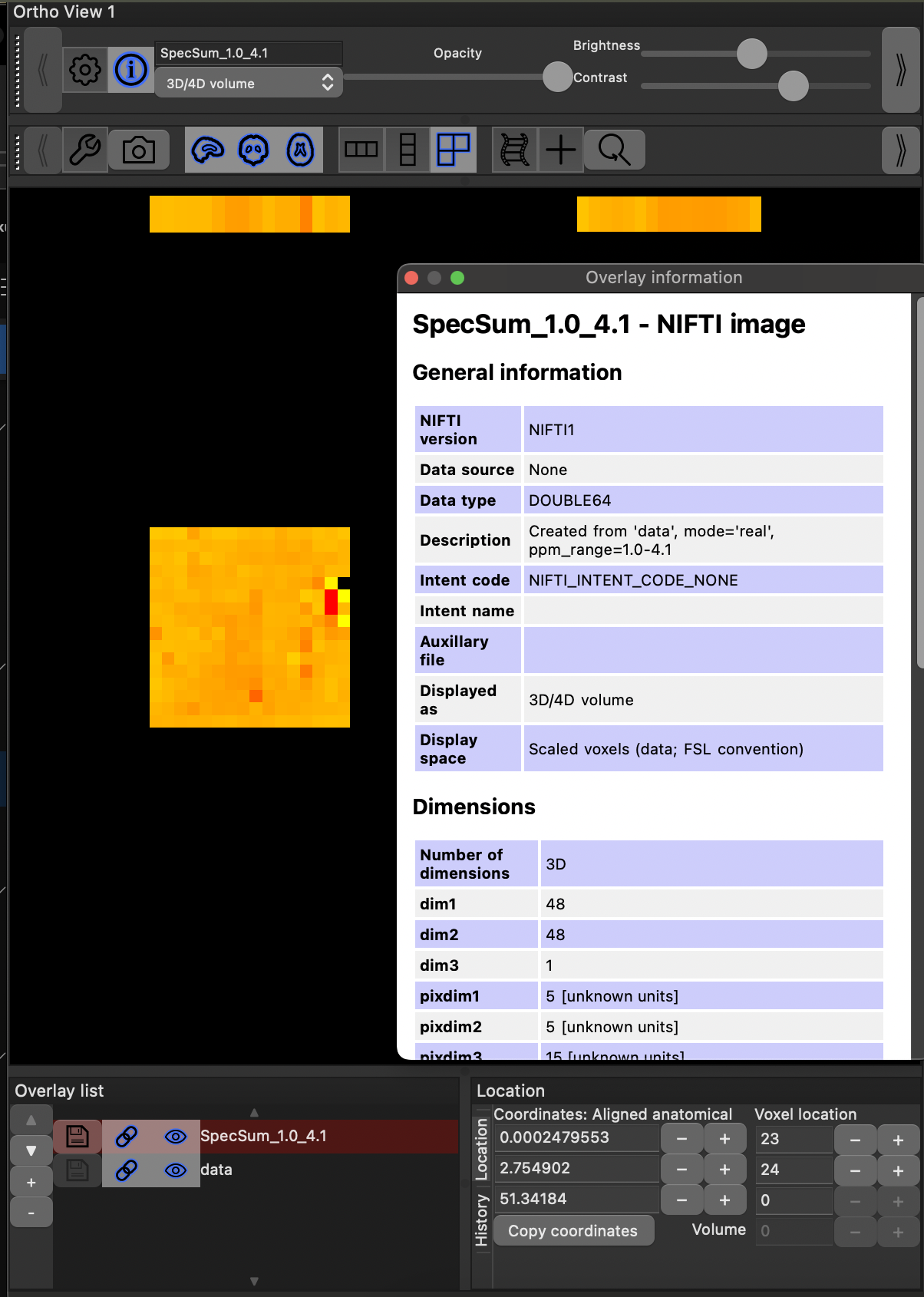

Manipulating Spectra

Interactive Phasing of Spectra

Phasing of spectra can be carried out manually using the MRS View control panel (open with mrs_ctrl_icon, or by the Settings -> MRS {N} -> MRS control menu option). Zero and first-order phase can be applied using the relevant fields in the menu.

Phase will be applied simultaneously to all spectra in the MRS view if the Link 0th and 1st order phase check-box is selected. If deselected, then different phase can be applied to a single spectrum by selecting the spectrum in the Overlay List panel.

_images/mrs_ctrl_panel_default.png

Phasing can also be carried out interactively in the MRS View. To do this, left click and pan whilst holding the control or shift (or both) keys to apply zero-order and first-order phase respectivel, or both together. As above, all spectra will be phase simultaneously if the Link 0th and 1st order phase check-box is selected in the control panel. Left and right click without any modifier keys will pan and zoom the spectrum view respectively.

Interactive Phasing Key Combinations & Actions

Key Combination

Action

Left click (l/r/u/d)

Pan view

Right click (l/r/u/d)

Zoom view

Left click (l/r) + ctrl

Zero-order phase

Left click (u/d) + shift

First-order phase

Left click (l/r/u/d) + ctrl + shift

Both

Apodizing Spectra

An apodization (exponential time domain filter) can be applied to the spectra, to decrease the visual effect of noise on a spectrum. This can be applied by using the Apodize (in Hz) slider in the control panel. To apodize all spectra together, check the Link apodization box.

Pinning Multiple Spectra

Multiple spectra from the same or different datasets can be compared directly in the MRS view by pinning the currently displayed spectrum using the Plot list panel.

Clicking the ‘+’ button on either the Plot list panel or the main MRS view toolbar will hold a spectrum (and add it to the list of displayed spectra in the Plot list panel). Pinned spectra can be removed using the ‘-’ buttons.

_images/pin_spectra.png

Whenever a spectrum is pinned, an annotation mark will be placed on each view in the orthographic panel marking the spatial origin of the spectrum. The colour of the mark will match (and dynamically update with) that of the spectrum in the MRS view.

The style of mark can be modified using the Annotations panel (Settings -> Ortho view N -> Annotations).
